Laundry Tray System
Flows to: 50 gpm
Heads to: 30 ft
Discharge: 1.5″
HP: 0.33
Laundry Tray System
MODEL: SP33LT & ESB33LT

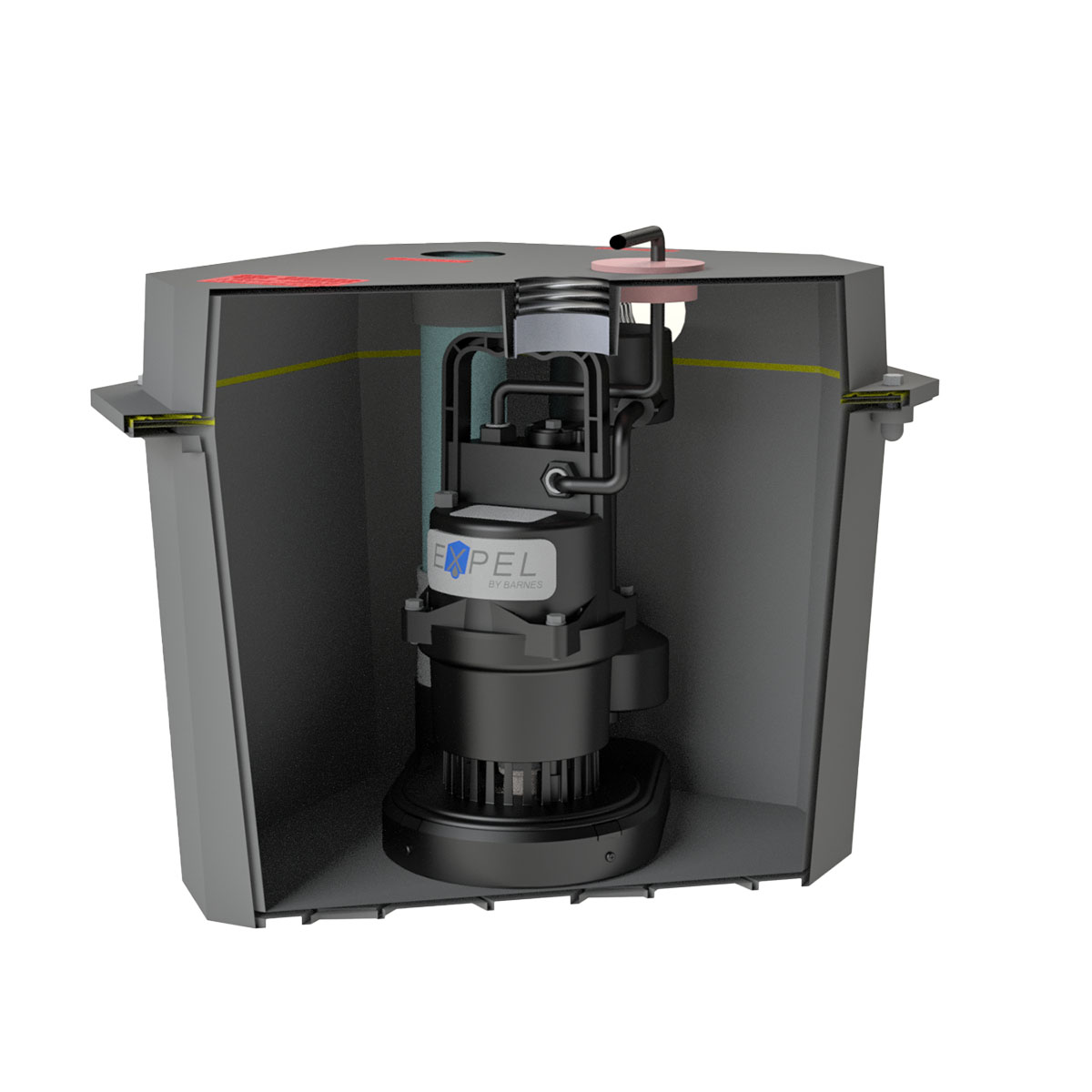

Laundry Tray Systems come complete, pre-assembled with pump, tank, discharge pipe and check valve. Systems can be used to remove water where gravity flow is not available without breaking concrete. Typical applications include laundry sinks, wet bars, dehumidifiers, water softeners and air conditioner condensation.
Flows to: 50 gpm
Heads to: 30 ft
Discharge: 1.5″
HP: 0.33
RPM: 3450
Voltage: 120 (1 phase)
SP33LT:
- All tray components are durable, corrosion resistant polythylene
- Inlet is 1.5″ threaded spin-weld insert
- Discharge, Vent and cord all sealed with grommets
- Accomodates 1 1/2″ NPT discharge piping
- Stainless steel bolts
- Commercial 11 gallon capacity
- Uses heavy duty SP33 1/3 HP pump
- Size: 12″ x 17″ x 14″
ESB33LT Features:
- All tray components are durable, corrosion resistant polythylene
- Discharge, Vent and cord all sealed with grommets
- 1 1/2″ NPT inlet valve and discharge
- Stainless steel bolts
- Internal check valve
- 6 gallon capacity
- Uses residential duty Expel ESB33 1/3 HP pump
- Size: 15″ x 15″ x 14″
